Add GIS Assets to an Existing Work Order

Add GIS Assets to an Existing Work Order

 Learn how to add GIS assets to a work order from the map instead of from the asset inventory module.

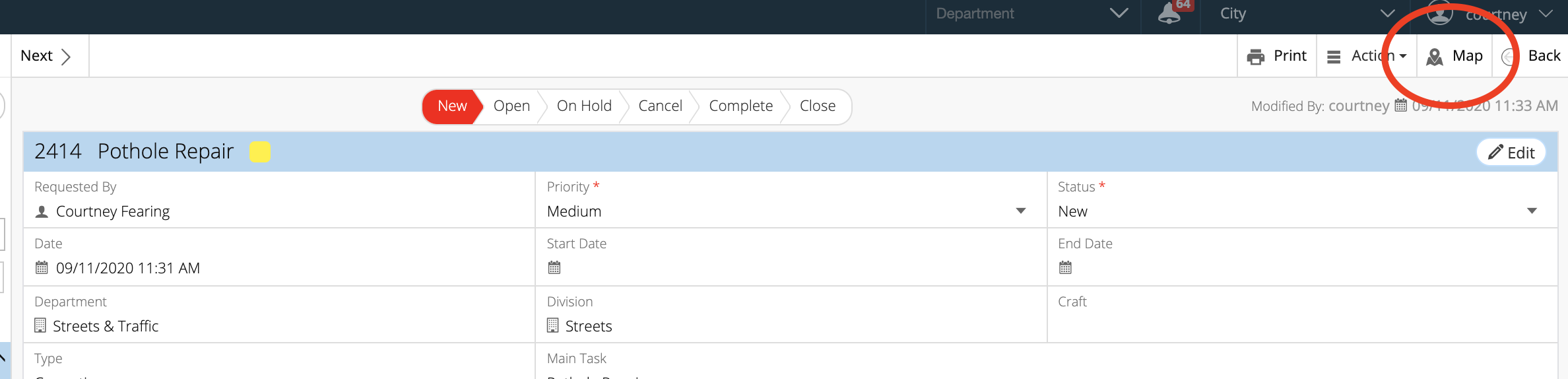

  1. At the top of a work order, click Map. Screen_Shot_2020-09-11_at_11.45.22_AM.png

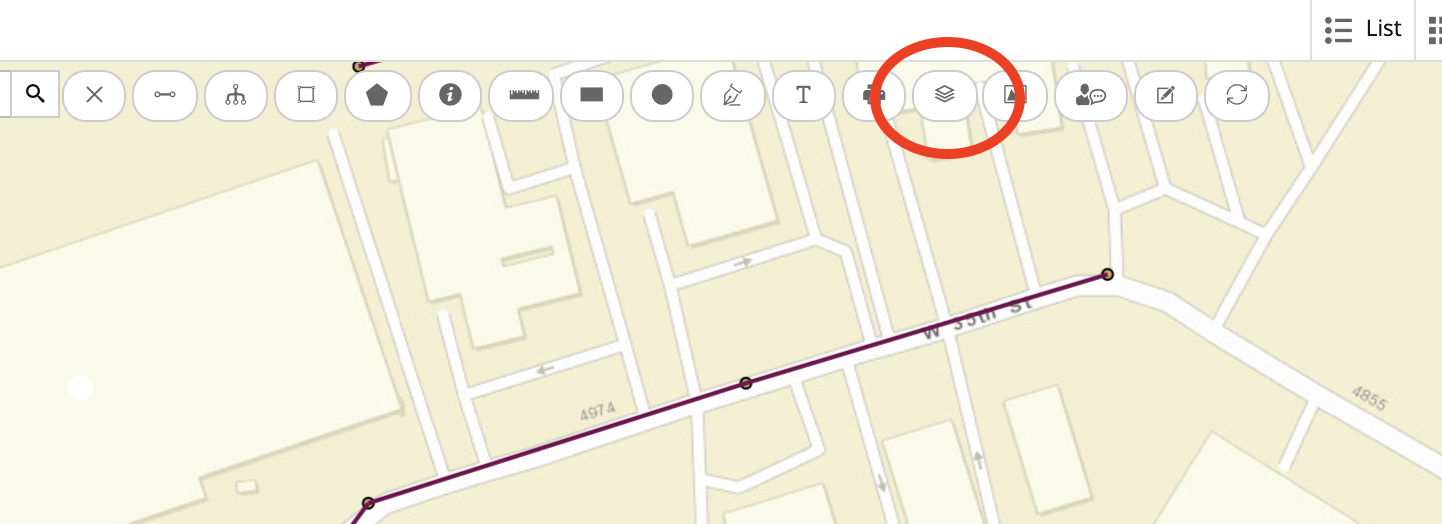

  2. First, ensure the correct asset layers are turned on. Click the layers icon.Screen_Shot_2020-09-11_at_11.46.22_AM.png

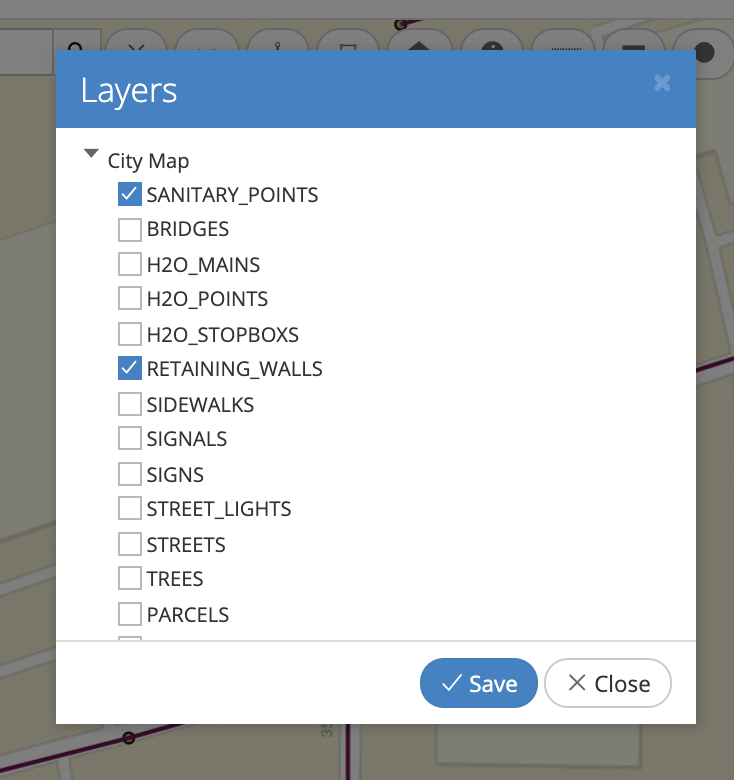

  3. Select desired layer(s). Click Save.Screen_Shot_2020-09-11_at_11.46.40_AM.png

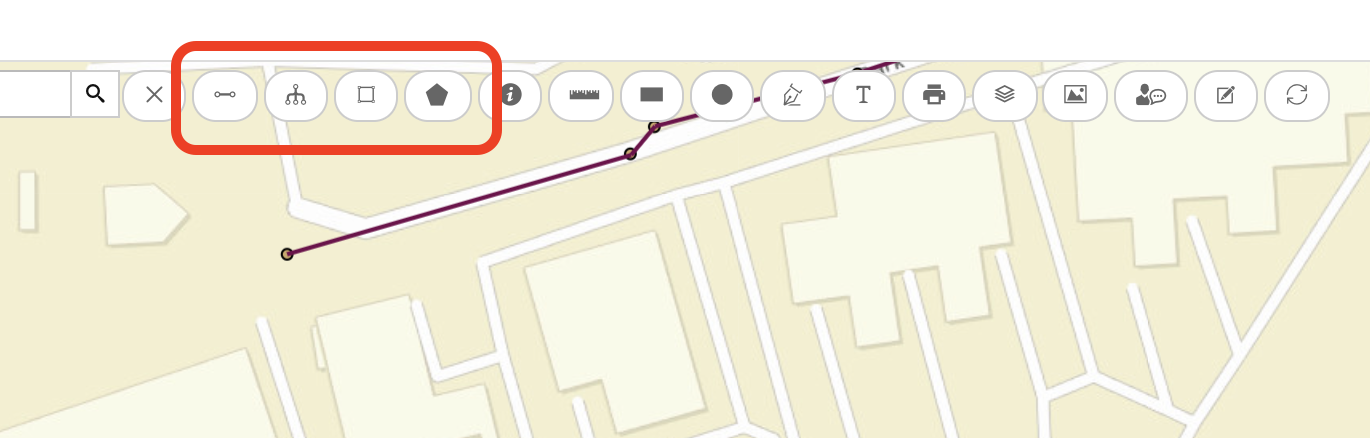

  4. Select asset(s) from the map using one of the selection tools. Screen_Shot_2020-09-11_at_11.47.37_AM.png

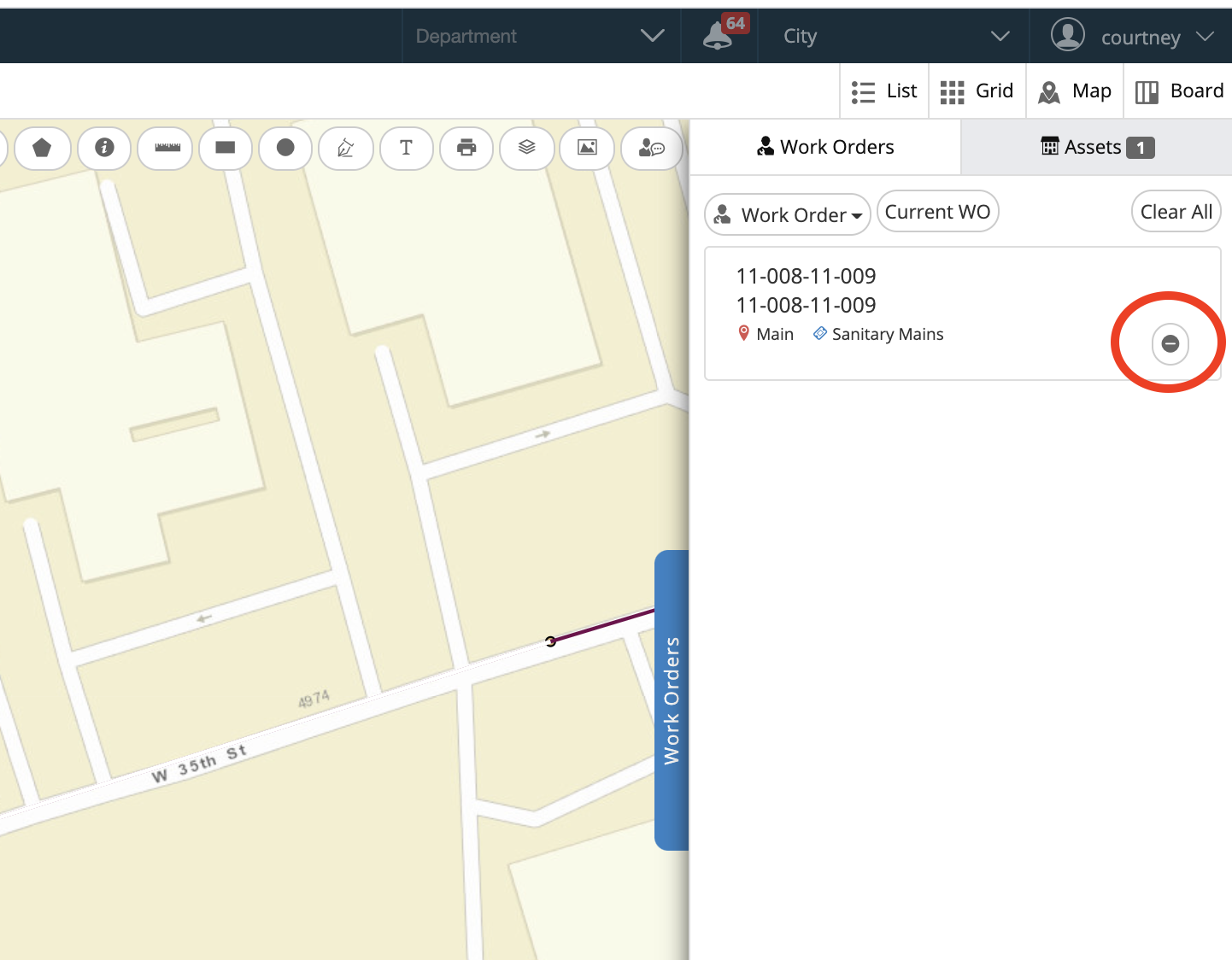

  5. Selected assets will appear in the right side panel. Review selected assets for accuracy. Delete unwanted assets by clicking the delete icon.Screen_Shot_2020-09-11_at_11.48.51_AM.png

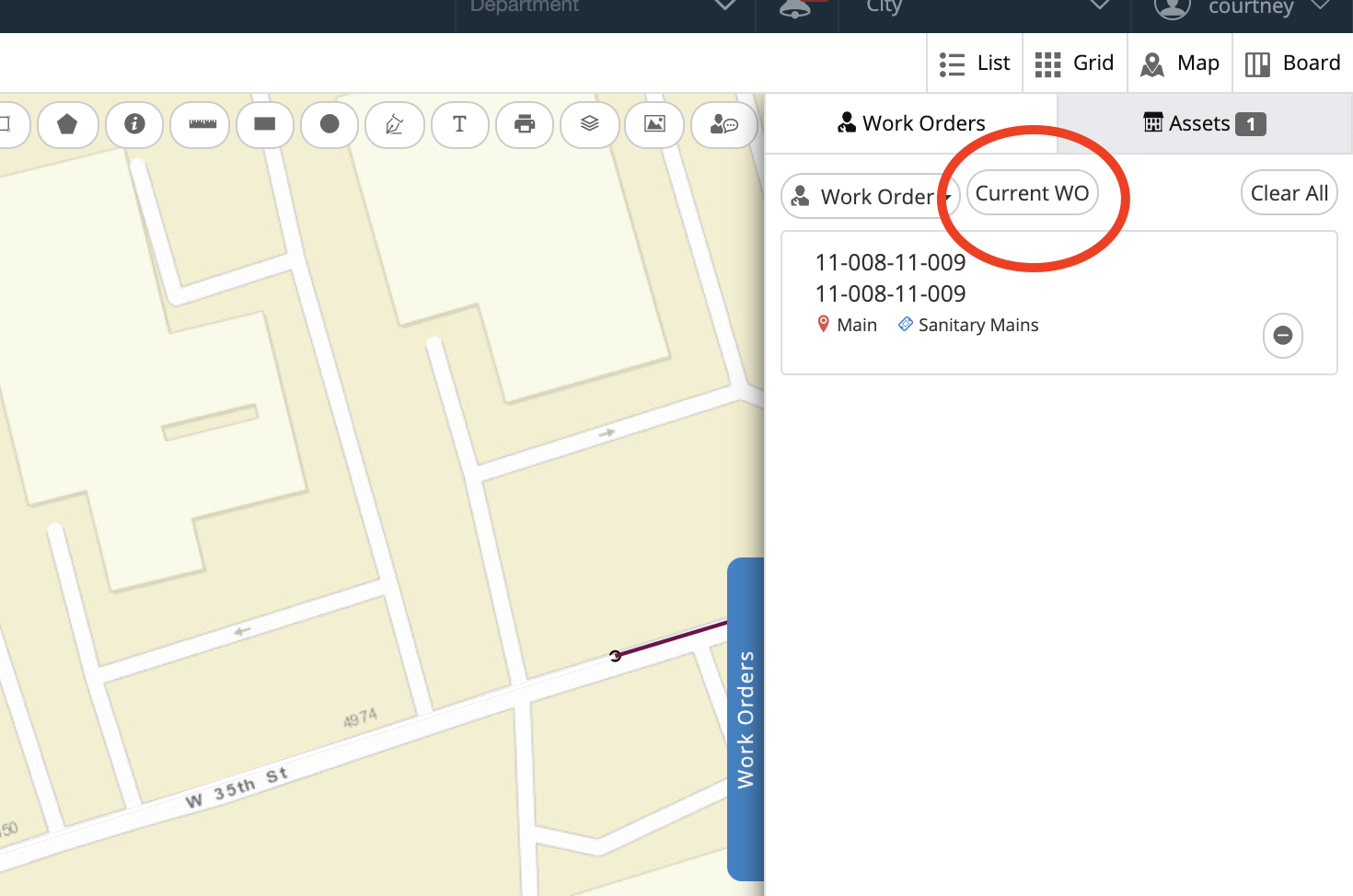

  6. Click Current WO to add the asset(s) to the work order. Screen_Shot_2020-09-11_at_11.49.23_AM.png
  7. Click Attach to confirm.
  8. To get back to the work order record, click More.
