Map GIS Attributes to NEXGEN Fields

Map GIS Attributes to NEXGEN Fields

GIS attributes can be mapped to NEXGEN attributes.  For example, clients may want to map name, install date, impact index, etc. Note - the data field type must match in NEXGEN and the GIS database order for attributes to be synced.

1.  Navigate to the GIS Integration module. Click Settings > Integration > GIS.
2. Click the layer for which you would like to map attributes.

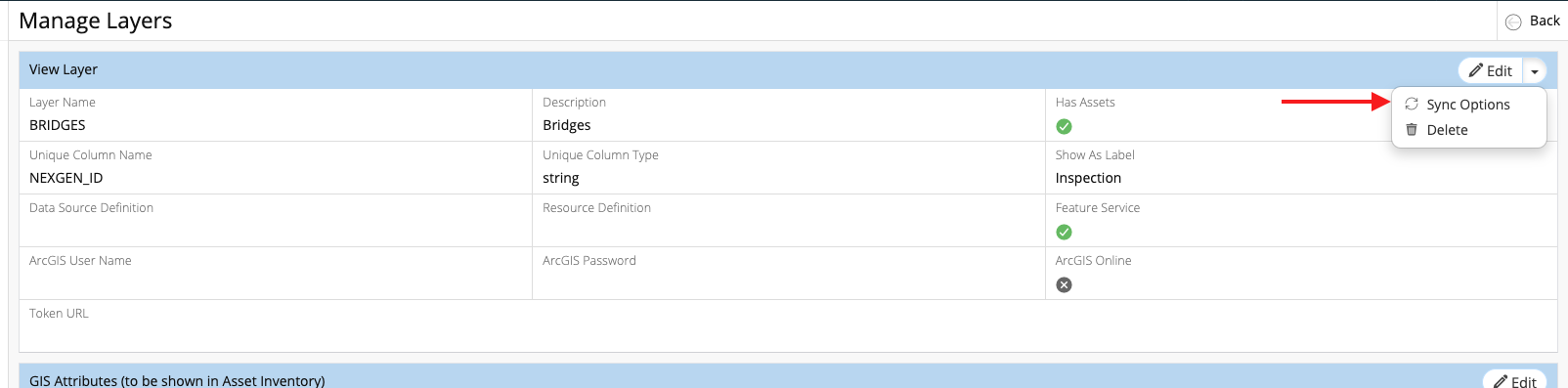

3.  Click the dropdown arrow to the right of the Edit.

4.  Select  Sync Options.

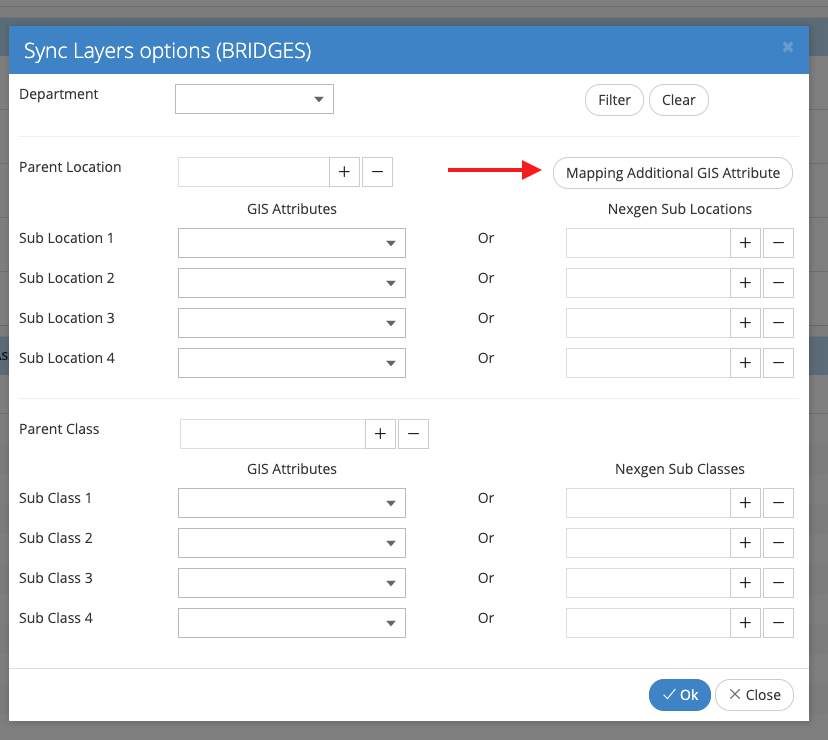

5. Click Mapping Additional GIS Attributes .

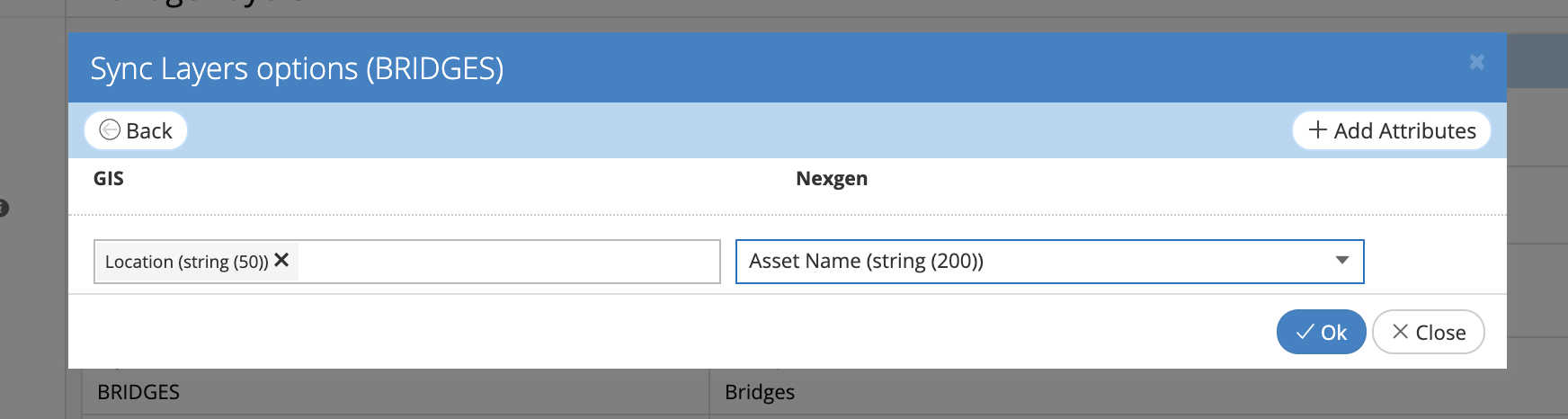

6. Select the GIS attribute and corresponding NEXGEN attribute. Ensure the field data types (in parentheses) match.
7. Click + Add Attributes to add more rows, if needed.


8.  Click Ok .
