Query NEXGEN Data and GIS Database Data in a Single Query

In previous versions, users could perform either a NEXGEN Query to query GIS assets based on NEXGEN attributes or a GIS Query to query GIS assets on GIS database attributes. Now, users can combine the two in a single query.

1. Navigate to the GIS module. Click Assets > GIS.

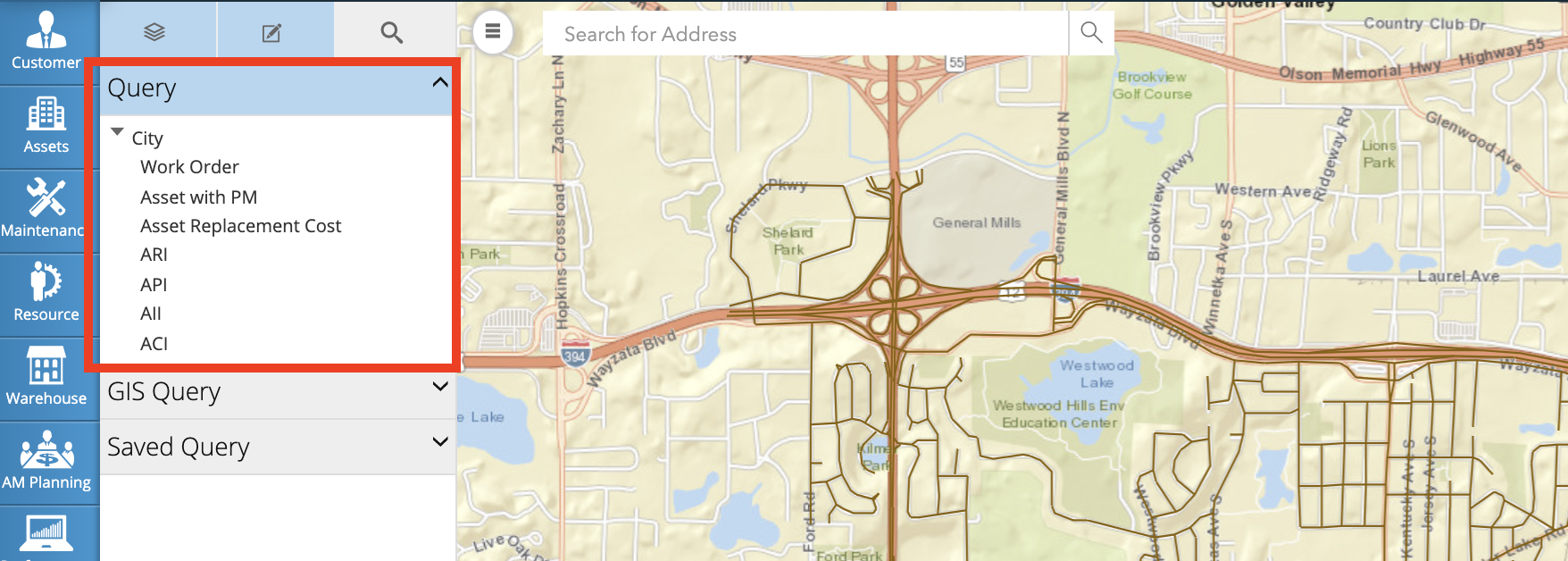

2. Click the magnifying glass icon to get to the query options.

3. Select a query from the list.

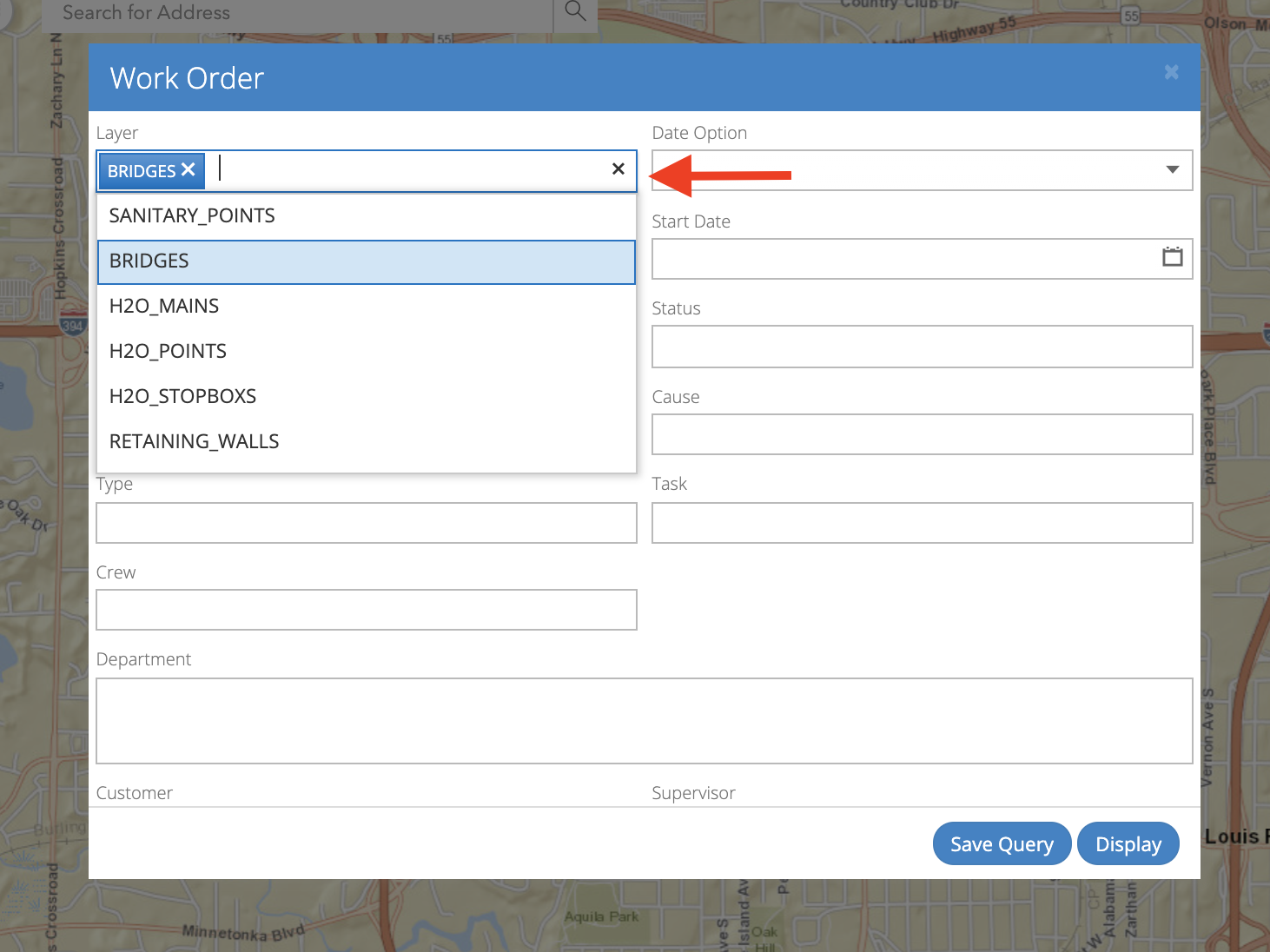

4. Select the layer(s) you would like to query.

5. Fill out any desired NEXGEN fields (top section).

6. Fill out any expression(s) to query the GIS database (bottom section).

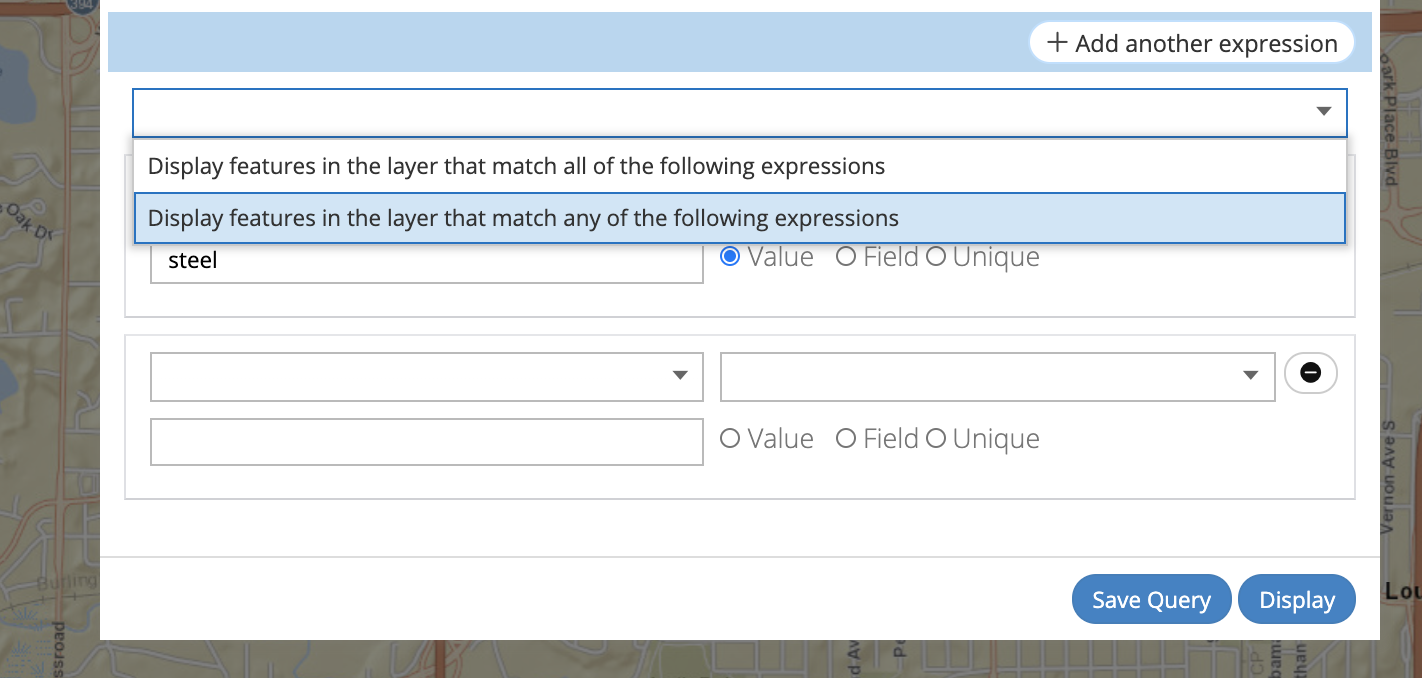

7.  Click + Add Another Expression to add multiple expressions. Select whether you would like the query to match ANY of the expressions or ALL of the expressions.

8. Click Save Query to add this query to your Saved Query list.

9. Click Display to see the assets meeting the query criteria highlighted on the map.
