Measure Distance on the GIS Map
Use the measuring tool to measure the real world distance between two points on the map.

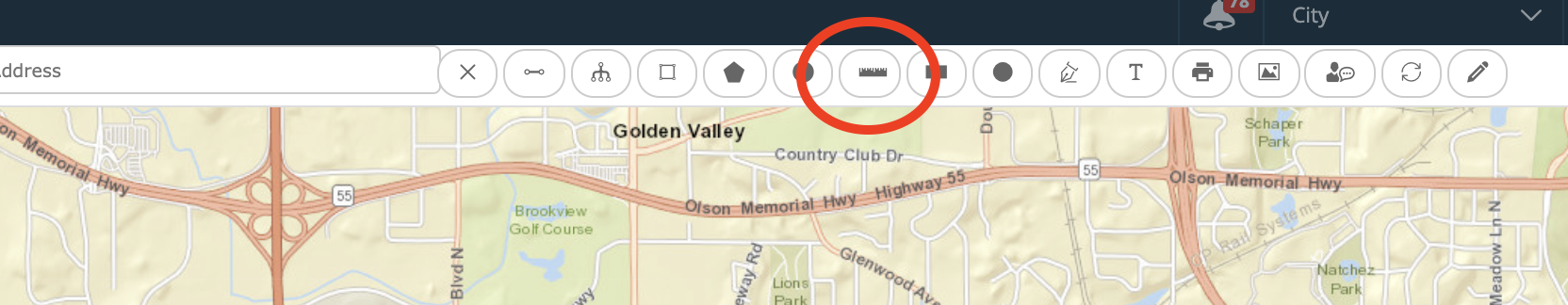

- Click the Measure Distance tool.
- Click and hold on the desired starting point on the map.
- While holding down the mouse, drag the pointer to the desired end point and let go.
- A popup appears that shows distance between the two points.
- Use the dropdown to select the units as miles, kilometers, meters or feet.
